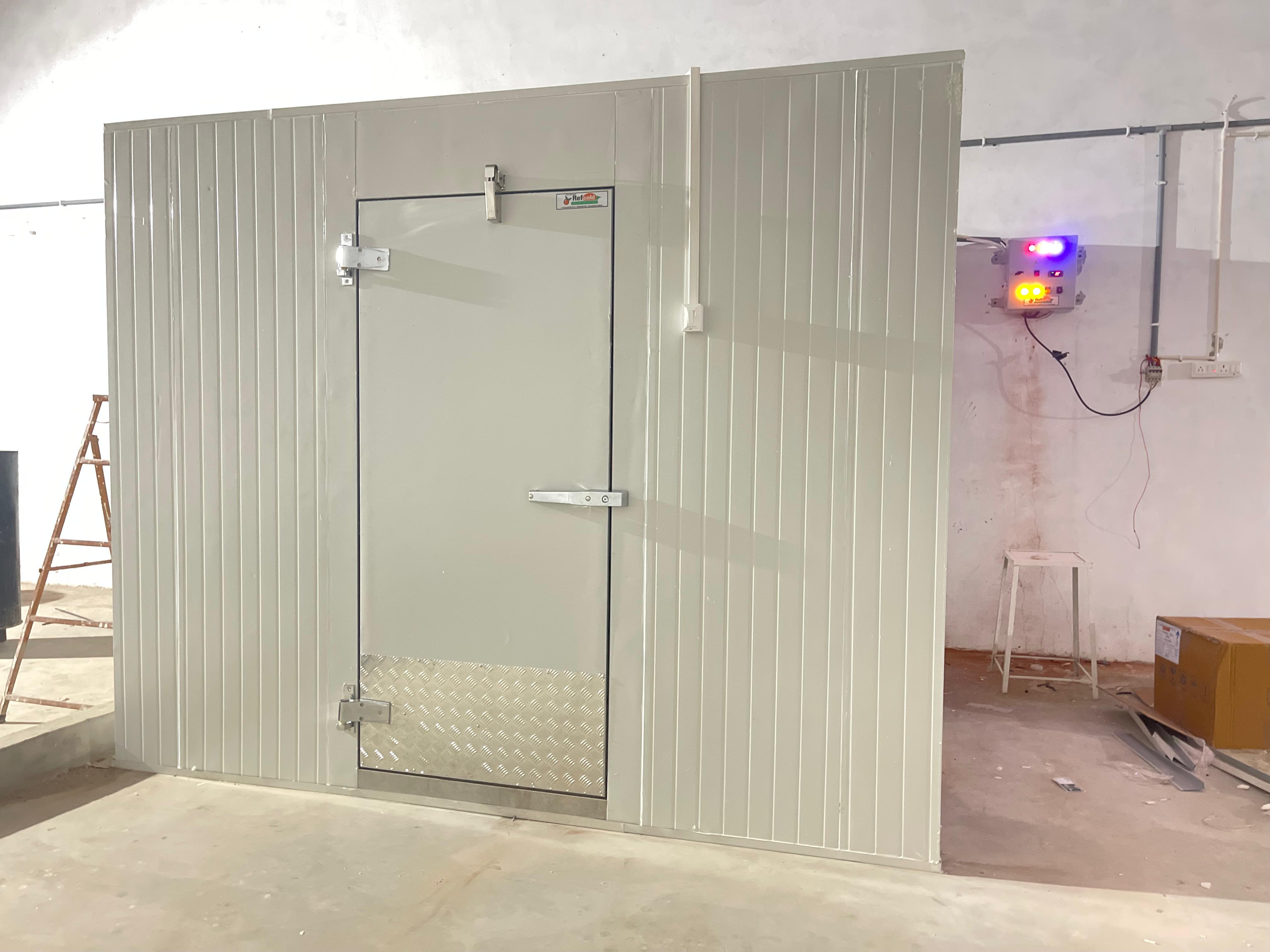

Cold Room

A cold room is an insulated space that maintains a specific temperature to store items that are sensitive to temperature or require specific conditions to remain fresh or viable.

We are supply 2.0 Mtr. To 5000 Mtr. Customize cold room
World Class Cold Room
Low Power Consumption
Fully Automatic Control Panel
Temperature Range +44°C To -90°C
SS Checker Plate
Puf Panel Size 60mm To 150mm
Easy Assemble

Cold Storage

Cold storage refers to the process and facilities used to preserve perishable goods at low temperatures to extend their shelf life and maintain their quality. It is commonly used in the food industry for items such as fruits, vegetables, dairy products, meat, and seafood.

Temperature Range -18°C To 4°C
Well-insulated to minimize energy consumption and ensure consistent temperatures.
Fully Automatic Control Panel
Regulates humidity levels to prevent spoilage and maintain quality.
Utilizes systems to track storage conditions and product rotation to minimize waste.
Cold storage can be in the form of walk-in coolers, freezers, or large warehouses designed for bulk storage.

Type Of Cold Storage

1. Refrigerated Cold Storage

Temp Range: 0°C to 10°C.
Purpose: Slows bacterial growth without freezing the product.
Used For:

Dairy (milk, cheese, yogurt)
Fruits and vegetables
Beverages
Cooked or semi-cooked food

2. Freezer Storage

Temp Range: -18°C or below
Purpose: Stops microbial growth and extends shelf life drastically.
Used For:

Frozen meat and seafood
Ice cream, frozen vegetables
Pre-packaged frozen meals

3. Blast Freezing / Quick Freezing Units

Temp Range:-30°C to -40°C (during freezing)
Purpose: Maintains product texture and avoids ice crystal damage.
Used For:

Rapid freezing of meat, fish, prepared foods
Bakery products (like dough)

4. Controlled Atmosphere (CA) Cold Storage

Temp Range: 0°C to 5°C
Userd For: Apples, berries, pears, kiwis, avocados
Features:

Controls oxygen(O₂), carbon dioxide(CO₂), humidity
Extends fruit freshness for 6–12 months

5. Cold Storage Transport Units / Mobile Cold Storage

Equipped with onboard refrigeration units
Used For: last-mile delivery or short/medium range transport
Purpose: Maintains cold chain during transportation
Includes:

Insulated containers
Portable reefer boxes (placed on trucks, ships, or at depots)

6. Cryogenic Cold Storage

Temp Range: -150°C and below
Used For: last-mile delivery or short/medium range transport
Purpose: Maintains cold chain during transportation
Used For:

Not common in general food industry
Special applications like biotech food ingredients, enzymes
Often uses liquid nitrogen or CO₂

Incubation Room

An incubation room is a controlled environment designed to provide optimal conditions for the growth and development of microorganisms, cells, or biological samples.

We supply customized incubation rooms ranging from 2.0 Mtr. to 5000 Mtr.
World Class Design
Low Power Consumption
Fully Automatic Control Panel
Temperature Range +5°C to +60°C
Humidity Control System
Stainless Steel Construction
Easy Assembly and Maintenance

Puf Panel

PUF (Polyurethane Foam) panel is a type of structural insulated panel used widely in industrial and commercial buildings, including dairy incubation rooms, cold storage, and clean rooms.PUF panels are made by injecting polyurethane foam between two metal sheets (usually pre-painted galvanized iron or stainless steel). The foam expands and hardens, forming a rigid, thermally insulated, and durable panel.

Thickness Size 40mm to 150mm
Pre-fabricated Panels
Available in fire-retardant grades with additives.
Excellent thermal resistance, making it ideal for temperature-controlled environments.
Tongue-and-groove interlocking for airtight and watertight assembly.
Easy Assembly and Maintenance

Freon & Ammonia Blast Freezer and Blast Chiller

Manufactured with German technology to increase life of perishable products

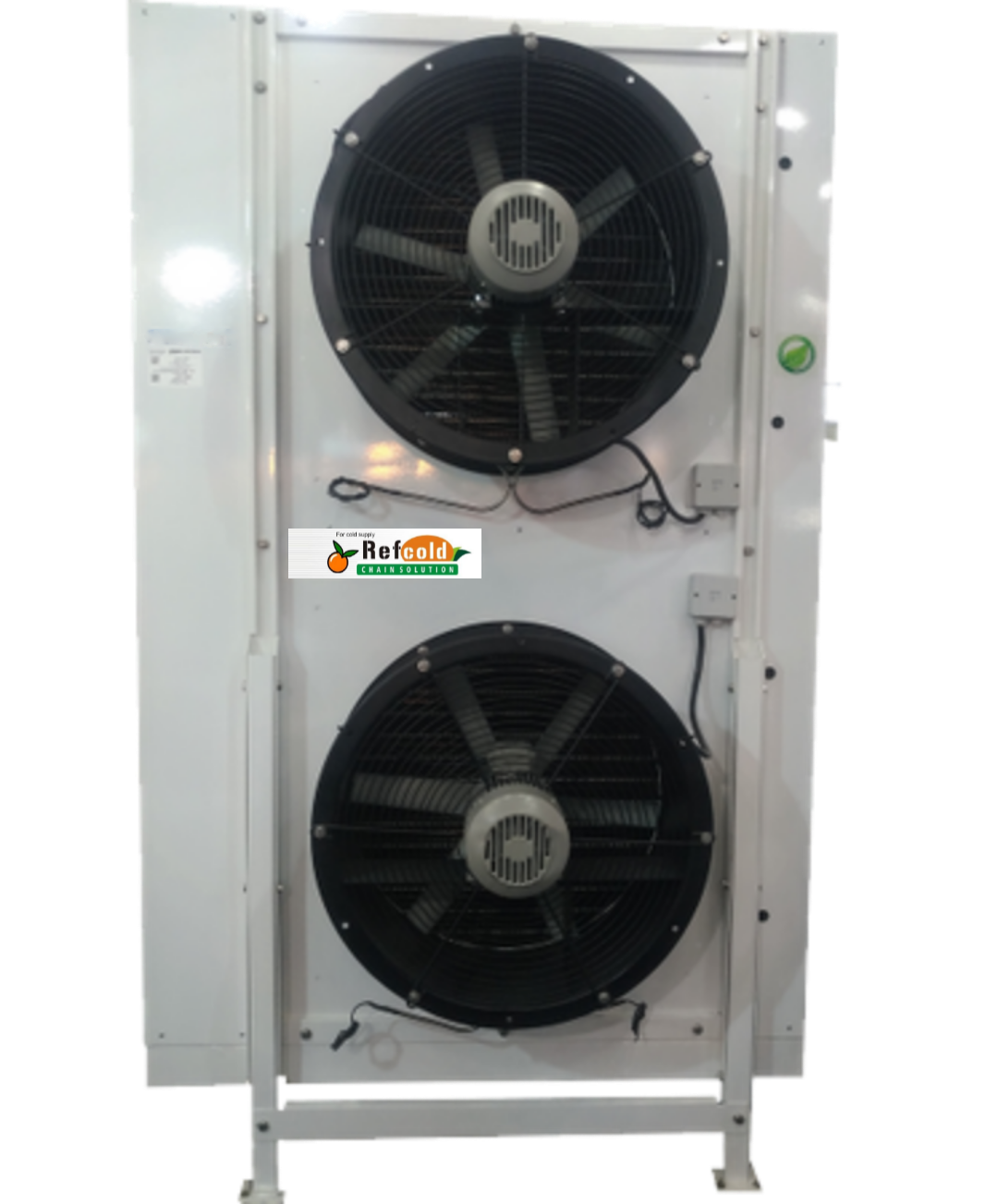

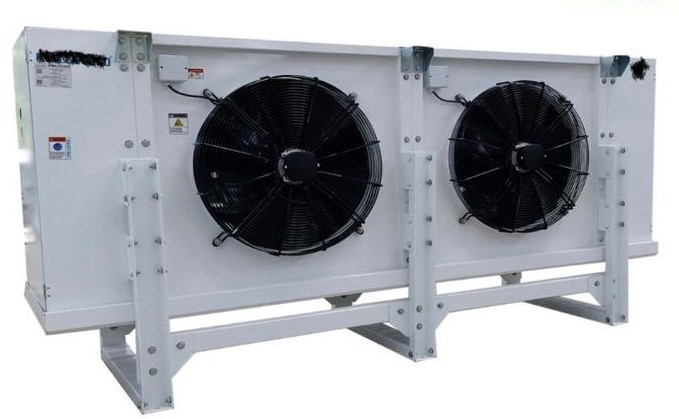

2 Fan Floor Mounted Units

4 Fan Floor Mounted Units

6 Fan Floor Mounted Units

8 Fan Floor Mounted Units

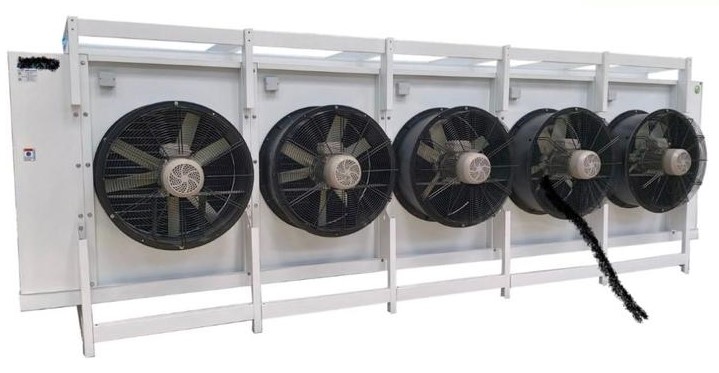

Floor Mounted Blast Freezers and Chillers

Optimally coordinated components, aluminum fins and robust model design, facilitates a whole host of application with large capacity range

Models available with 2, 4, 6 & 8 Fans
Available for Freon & Ammonia refrigerants
Air, Electric, Water & Hot gas option
Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
GI powder coated & SS 304 casing for rust free operation
Cooling capacity ranging from 5 kW to 120 kW
Fin spacing available from 4 mm to 10 mm
Proven quality fans: Ziehl Abegg, EBM or Favelle
Rippled fin edges for turbulence air flow
Saw tooth & plain blade fan options available (in Ziehl Abegg fans)
Bullet expansion on copper tubes in Freon units, and hydraulic expansion on SS tubes in ammonia units
Corrugated fin design for low pressure drop and efficient heat transfer

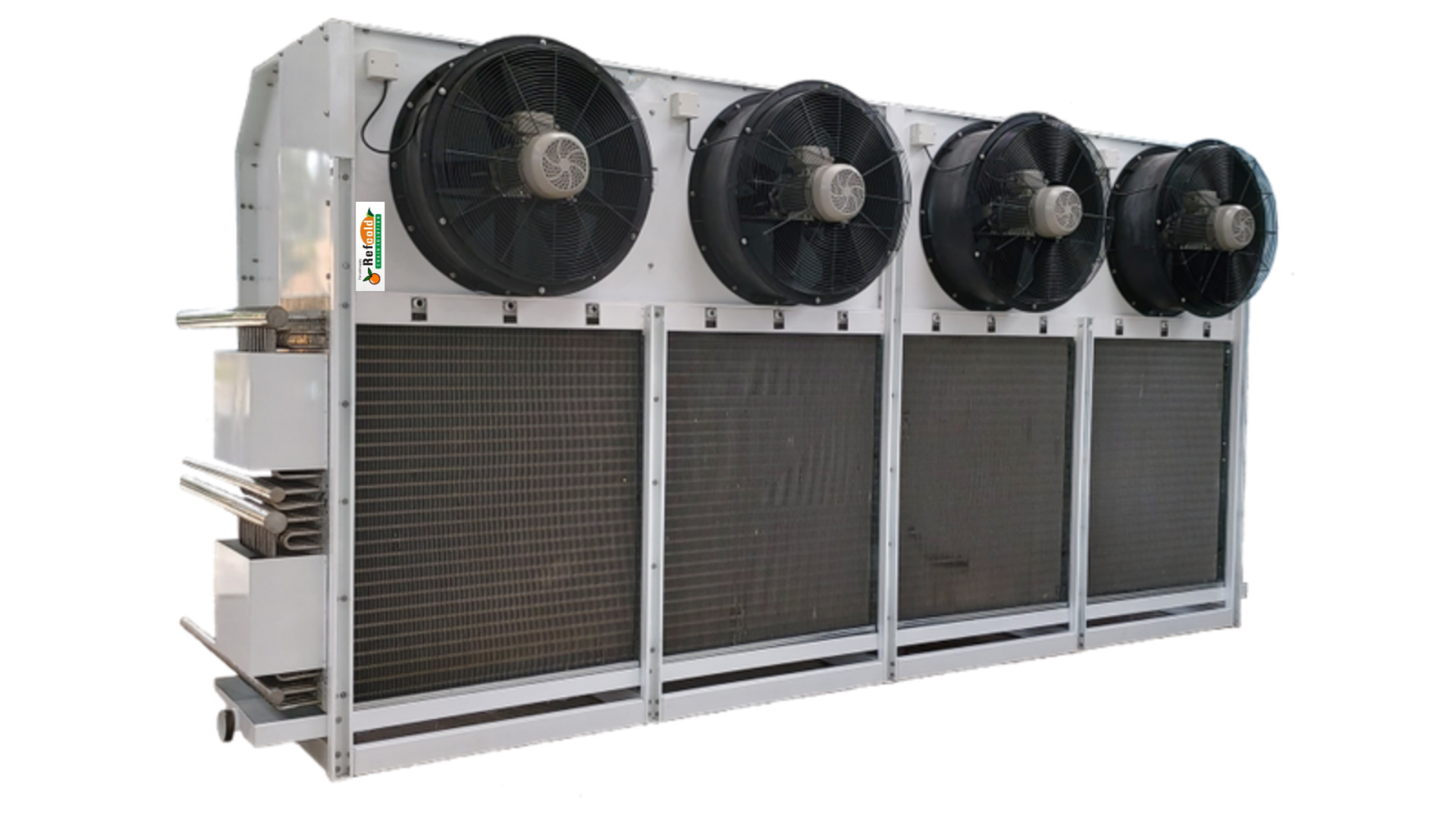

V-Type Floor Mounted Blast Freezers & Chillers

High static pressure air throw volume with contemporary design acknowledge to achieve temperature in a given pull down time

Models available with 1 to 4 Fans
Available for Freon & Ammonia refrigerants
Air, Electric, Water & Hot gas option
Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
GI powder coated & SS 304 casing for rust free operation
Cooling capacity ranging from 20 kW to 130 kW
Fin spacing available from 4 mm to 10 mm
Tube Axial Fans
Rippled fin edges for turbulence air flow
Bullet expansion on copper tubes in Freon units, and hydraulic expansion on SS tubes in ammonia units
Corrugated fin design for low pressure drop and efficient heat transfer

2 Fan Ceiling Mounted Units

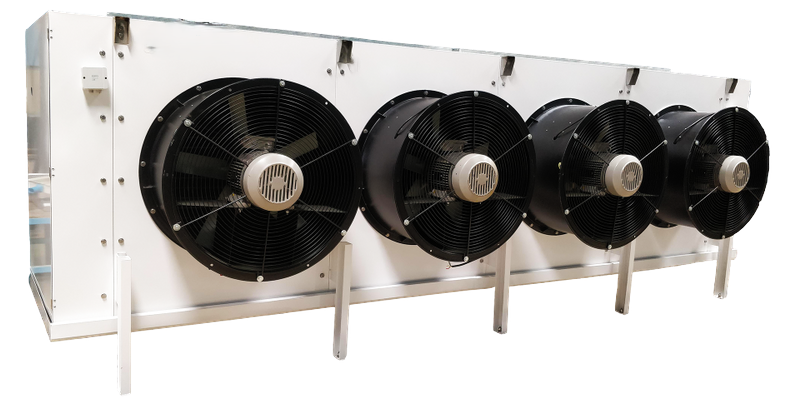

4 Fan Ceiling Mounted Units

5 Fan Ceiling Mounted Units

Ceiling Mounted Blast Freezers and Chillers

High static pressure air throw volume with contemporary design acknowledge to achieve temperature in a given pull down time

Models available with 1 to 8 Fans
Available for Freon & Ammonia refrigerants
Air, Electric, Water & Hot gas option
Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
GI powder coated & SS 304 casing for rust free operation
Cooling capacity ranging from 5 kW to 120 kW
Fin spacing available from 4 mm to 10 mm
Proven quality fans: Ziehl Abegg, EBM or Favelle
Rippled fin edges for turbulence air flow
Saw tooth & plain blade fan options available (in Ziehl Abegg fans)
Bullet expansion on copper tubes in Freon units, and hydraulic expansion on SS tubes in ammonia units
Corrugated fin design for low pressure drop and efficient heat transfer

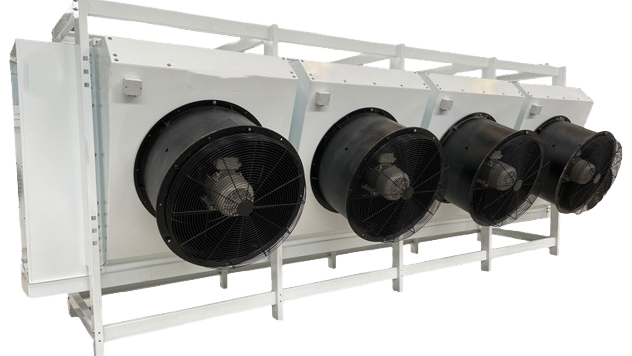

4 Fan Angular Shaped Units

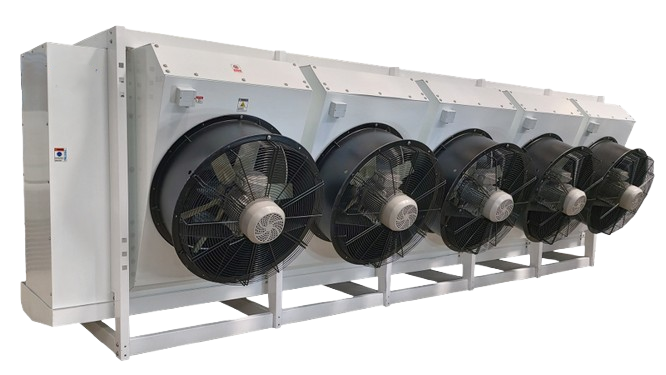

5 Fan Angular Shaped Units

Angular Shaped Blast Freezers and Chillers

High static pressure air throw volume, banded at an angle to throw directly on the products with contemporary design acknowledge to achieve temperature in a given pull down time

Models available with 1 to 8 Fans
Available for Freon & Ammonia refrigerants
Air, Electric, Water & Hot gas option
Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
GI powder coated & SS 304 casing for rust free operation
Cooling capacity ranging from 5 kW to 120 kW
Fin spacing available from 4 mm to 10 mm
Proven quality fans: Ziehl Abegg, EBM or Favelle
Rippled fin edges for turbulence air flow
Saw tooth & plain blade fan options available (in Ziehl Abegg fans)
Bullet expansion on copper tubes in Freon units, and hydraulic expansion on SS tubes in ammonia units
Corrugated fin design for low pressure drop and efficient heat transfer

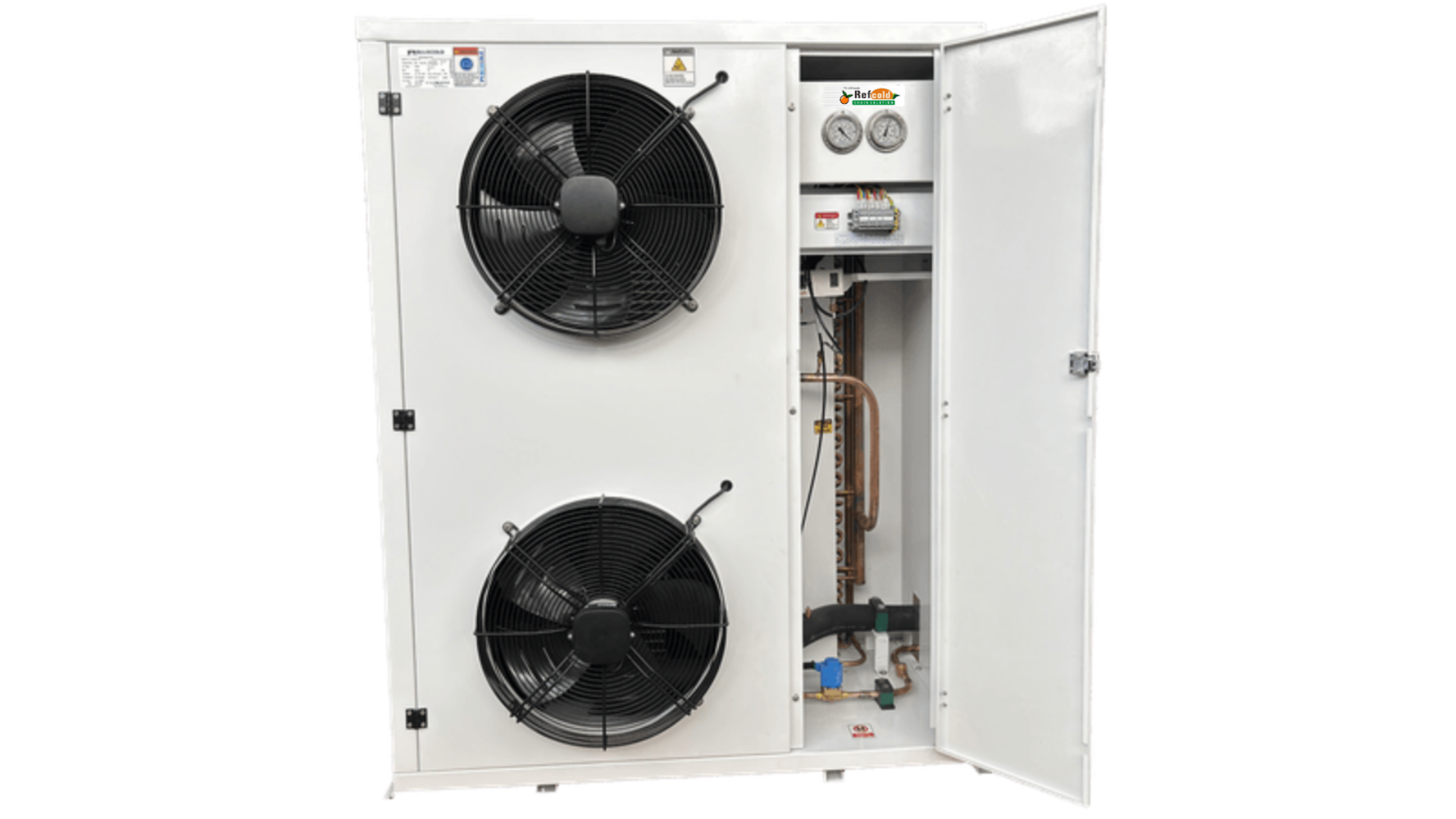

Emerson Scroll Condensing Units

Our Installed Units

Condensing Units

Optimally coordinated components, aluminum fins and robust model design, facilitates a whole host of application with large capacity range

Emerson compressor
GI Powder coated canopy
CNC machined copper piping
Axial flow fan for high air flow
Cooling capacity: 1.5 kW to 25 kW
Compressor capacity: 0.75 HP to 7.5 HP
Copper tube and aluminum fins
Brazed under inert nitrogen atmosphere
Design for Indian atmospheric conditions
Medium and low temperature applications

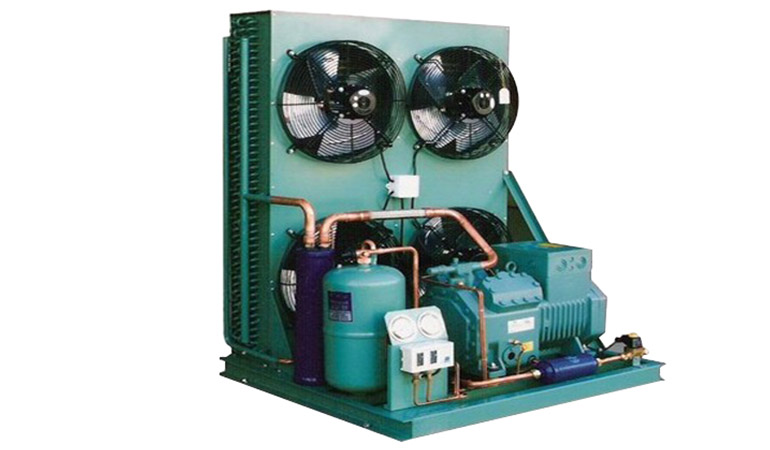

Air Cooled Condensing Unit

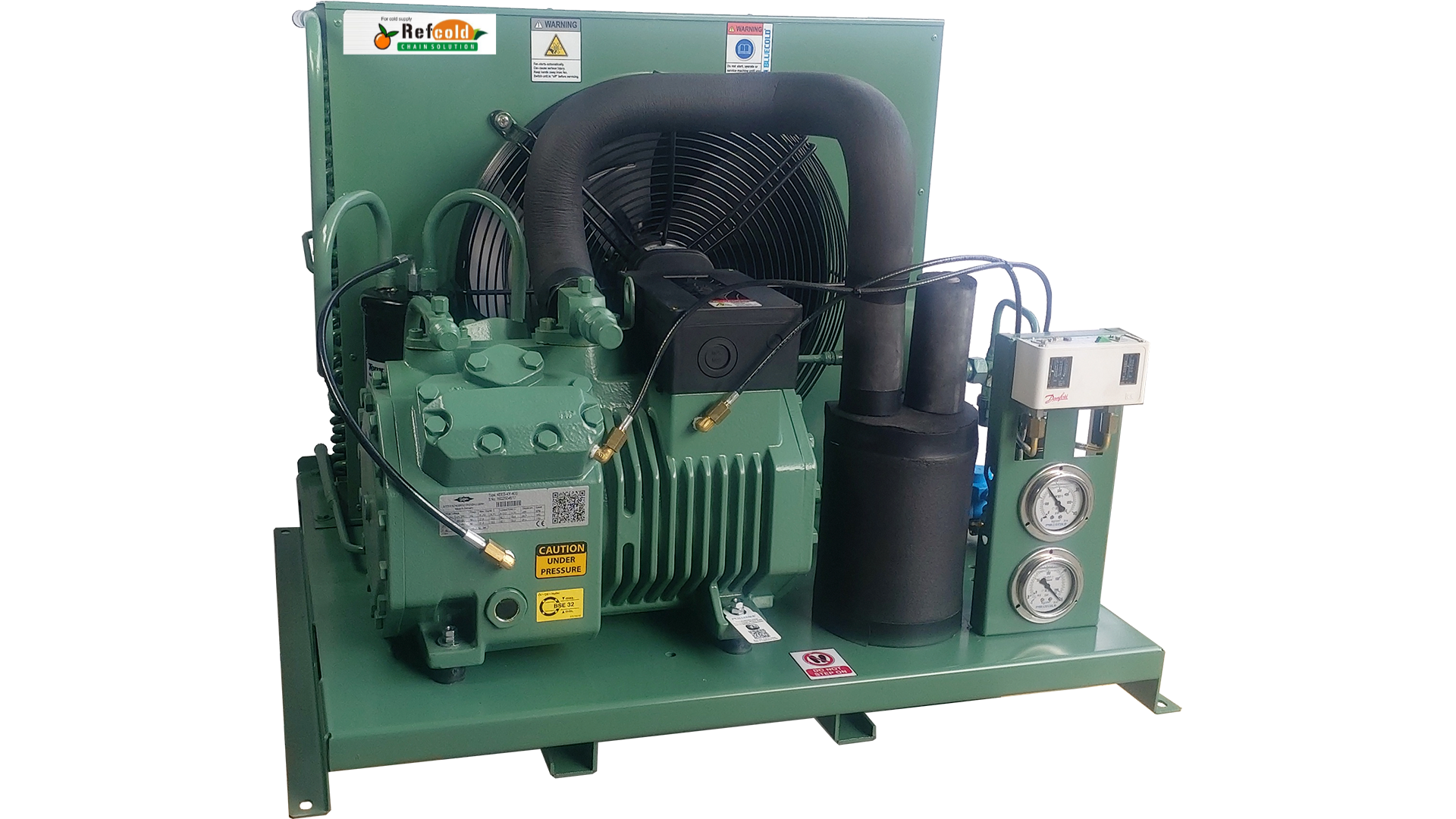

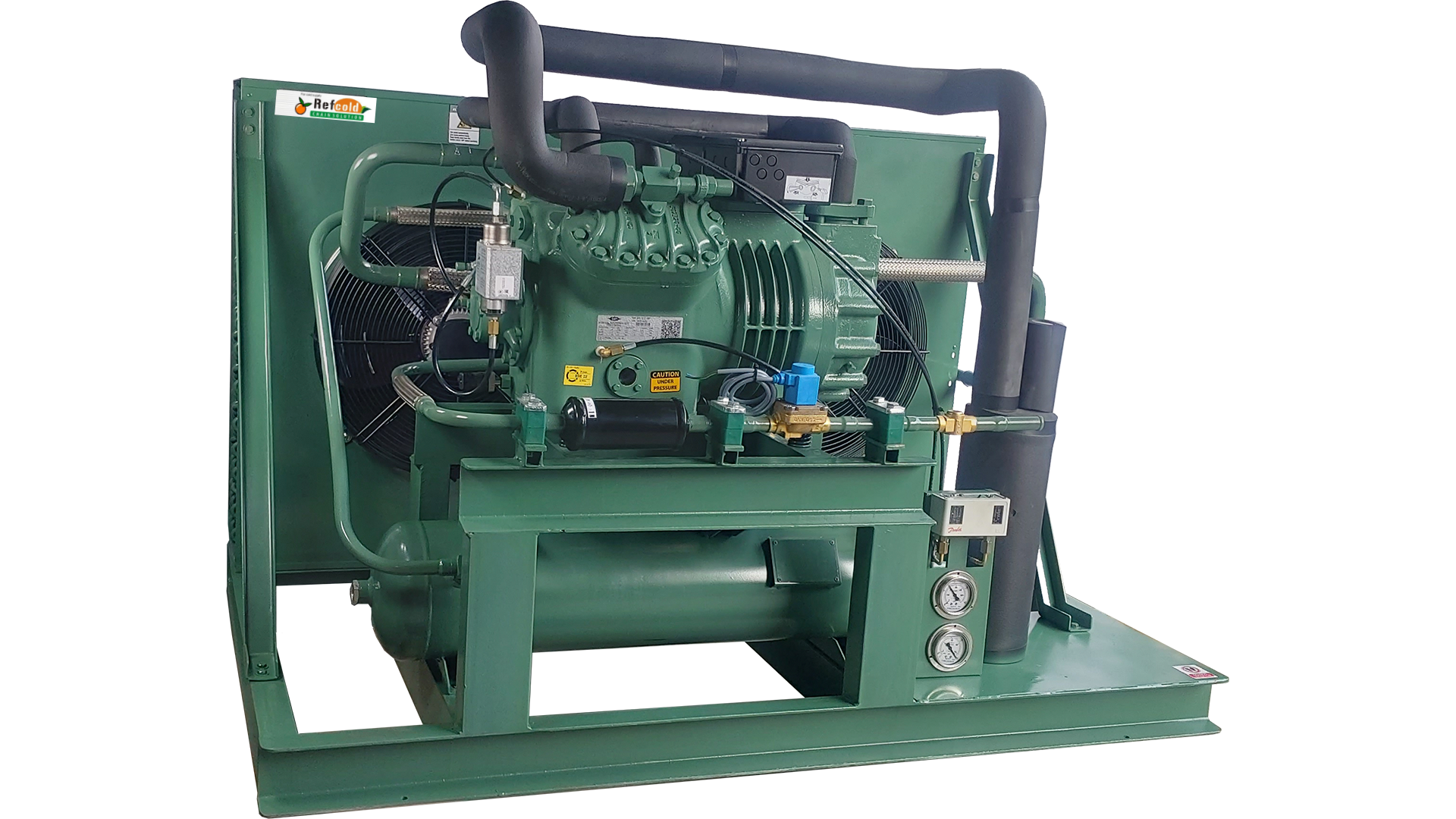

Air Cooled Condensing Unit - Bitzer Compressor

Optimally coordinated components, powder coated aluminum fins and robust model design, facilitates a whole host of application with large capacity range

Single stage or two stage reciprocating & scroll compressor
Base frame on anti-vibration mounts
CNC machined copper piping
CNC machined copper pipingCooling capacity: 1.5 kW to 100 kW
Compressor capacity: 2 HP to 50 HP
Copper tube and aluminum fins
Brazed under inert Nitrogen atmosphere
Design for Indian atmospheric conditions
Medium, low and ultra-low temperature application

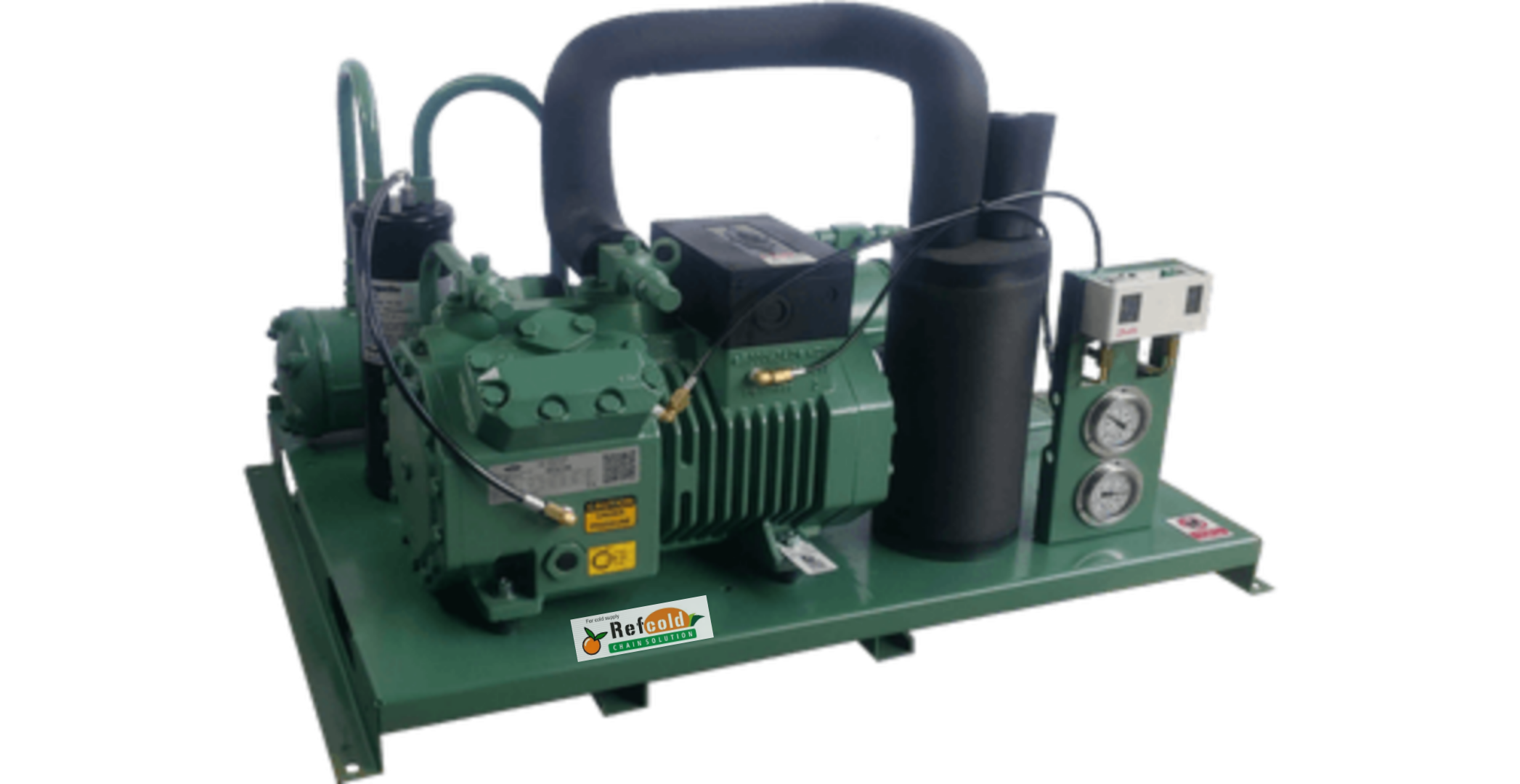

Water Cooled Condensing Unit

Optimally coordinated components, copper piped condensers and robust model design, facilitates a whole host of application with large capacity range

Single stage or two stage reciprocating & scroll compressor
River water & sea water resistant shall & tube condenser
Cooling capacity: 1.5 kW to 100 kW
Base frame on anti-vibration mounts
Compressor capacity: 2 HP to 50 HP
CNC machined copper piping
Brazed under inert Nitrogen atmosphere
Design for Indian atmospheric conditions
Medium, low and ultra-low temperature application

Cold Room Indoor Unit

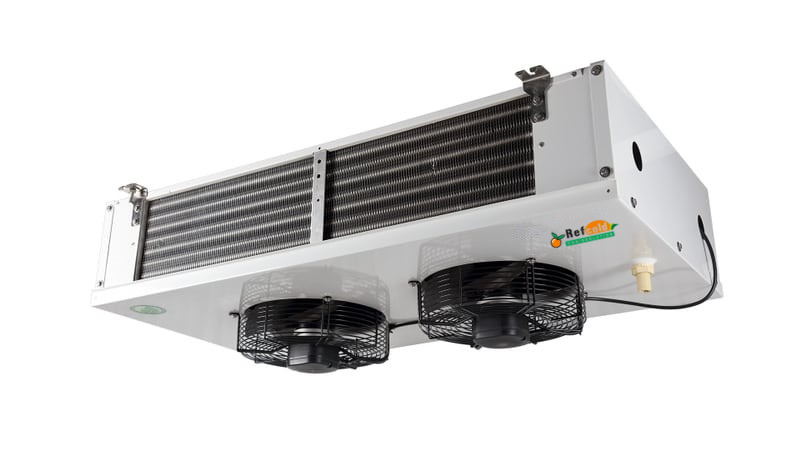

Unit Cooler

Manufactured with cutting edge technology and 3D modeled compact design with easy servicing facilities, Blue Cold unit coolers ensures to deliver desired temperature and long lasting performance

Collared fan outlet for wide air throw
SS ceiling mounting clamps for easy installation
Double drip tray
Drip tray with edges inclined at 30° angle
Cooling capacity ranging from 1.2 kW to 60 kW
Air, Electric, Hot gas & water defrost option
Bullet expansion on tubes
Fin spacing available from 4 mm to 7 mm
Proven quality fans: Ziehl Abegg, EBM or Favelle
AlMg powder coated, GI powder coated & SS 304 casing for rust free operation

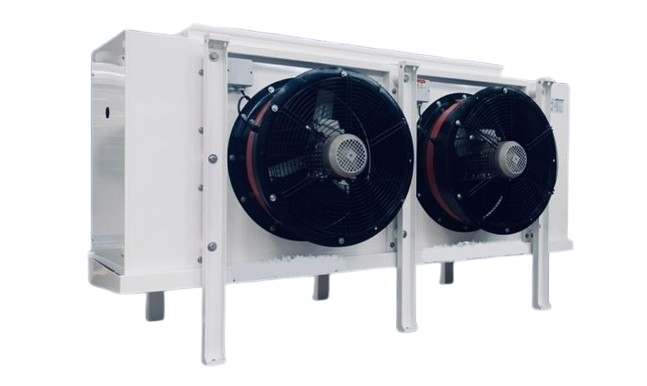

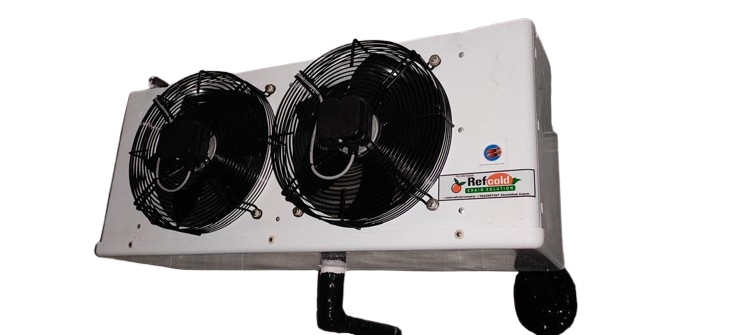

Freon Unit Cooler with SS Distributors

Get your cooling experience in a cold room with Blue Cold Freon Unit Cooler equipped with SS distributor. Designed with compact 3D modelling, this unit cooler is not just efficient; it's engineered for easy servicing, making maintenance an easy task.

Imagine having reliable temperature control that stands up to the toughest corrosive environments. With our robust features—including a SS distributor, copper joints, and durable SS capillary tubes—you can trust that your cooling needs are met without compromise. The options of tube axial and axial fans with GI powder coated or SS casing provide versatile performance tailored to your specific requirements.

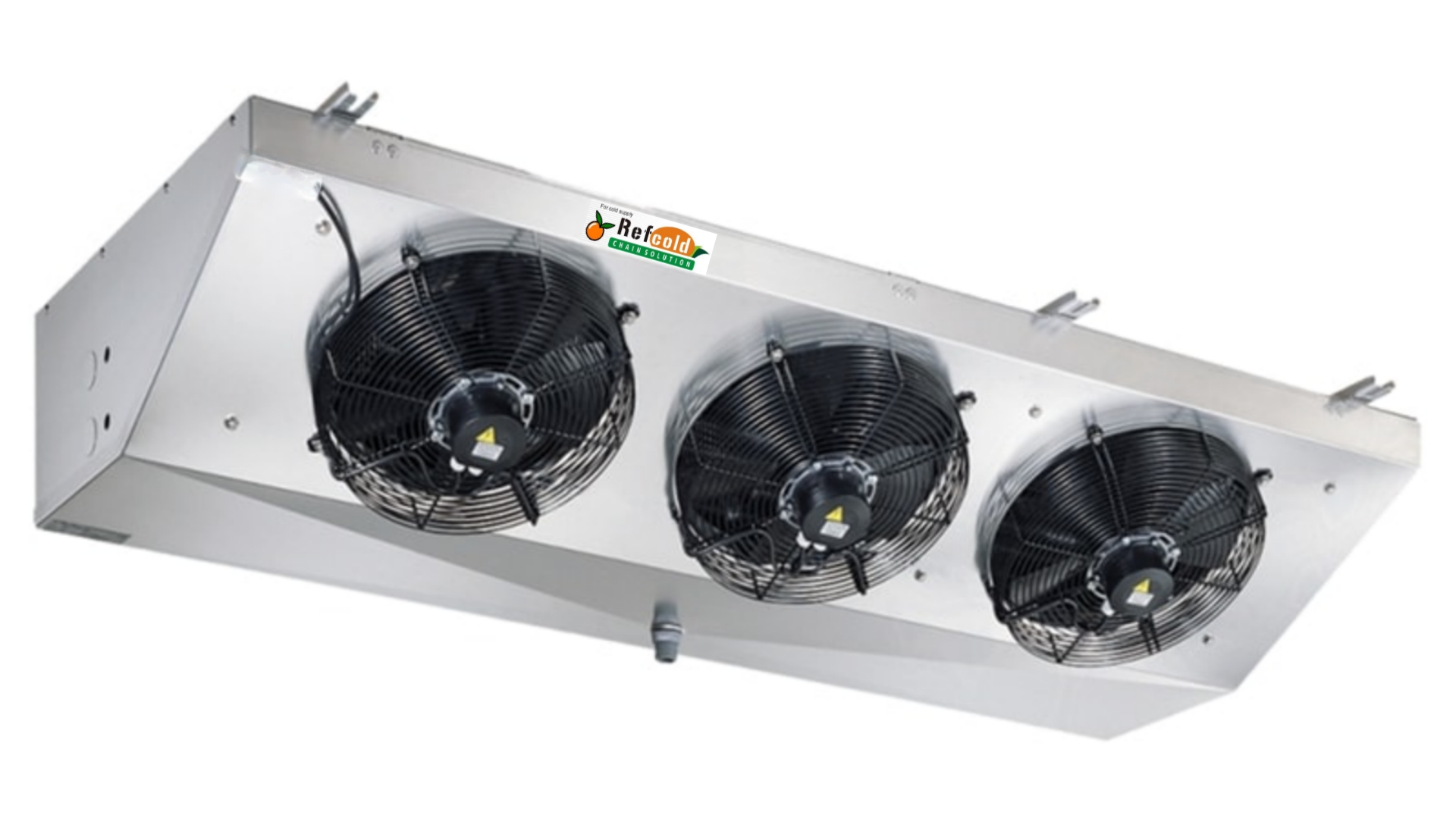

Angular Type Evaporator

Crafted at a measured angle, Blue Cold unit coolers ensures to deliver air throw over the products and desired temperature

SS material ceiling mounting clamps for easy installation
Drip tray with edges inclined at 30° angle
Double drip tray
Drip tray with edges inclined at 30° angle
Cooling capacity ranging from 10 kW to 80 kW
Electric, Hot gas & water defrost option
Bullet expansion on tubes
Fin spacing available from 4 mm to 7 mm
Proven quality fans: Ziehl Abegg, EBM or Favelle
AlMg powder coated, GI powder coated & SS 304 casing for rust free operation

Cold Storage Solution - Ammonia Unit Cooler

Product Coolers

Manufactured with cutting edge technology and 3D modeled compact design with easy servicing facilities, Blue Cold is India's leading manufacturer in ammonia product cooler for freezer rooms, 5000 MT cold storage and cold warehousing facilities

Collared fan outlet for wide air throw
Optional streamer for high air throw
GI powder coated & SS 304 casing for rust free operation
Drip tray with edges inclined at 30° angle
Cooling capacity ranging from 6 kW to 90 kW
Proven quality fans: Ziehl Abegg, EBM or Favelle

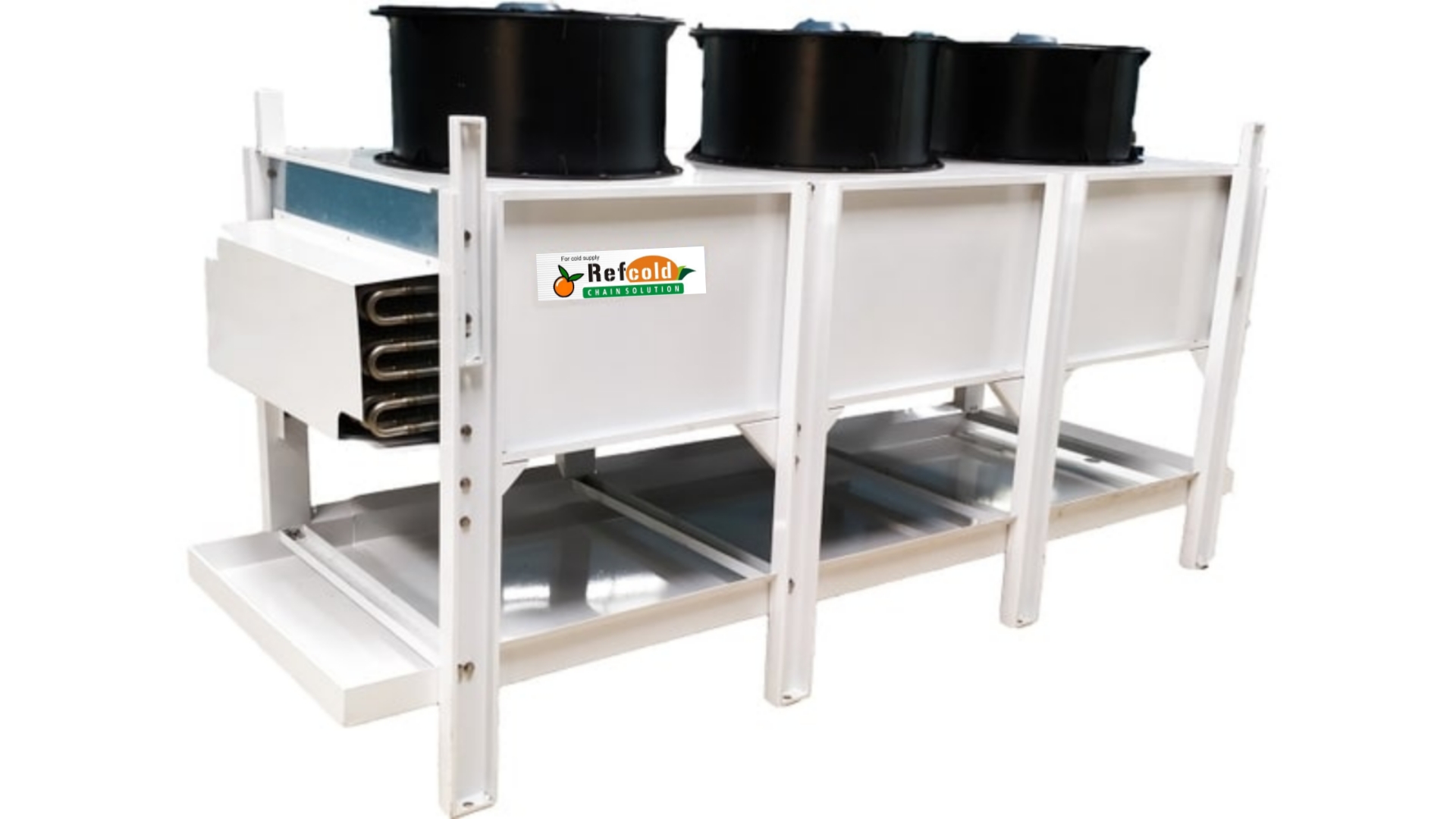

Down Throw Evaporators

Downward air throw pattern evaporators ensures freshness of chillies and maintains medium temperature with long lasting life span

Tube Axial Fans for high air flow
GI powder coated & SS 304 casing for rust free operation
Cooling capacity ranging from 5 kW to 150 kW
Temperature ranging from 6 °C to 8 °C

Dry Coolers

RefCold high-quality dry coolers serve in a wide range of applications. With years of experience and a deep understanding of the needs, we are committed to delivering reliable, energy-efficient cooling solutions that help you to meet your cooling requirements while minimizing their environmental impact.

Our drycoolers are designed to provide efficient and effective cooling for various fluids, including water, glycol, and refrigerants. They are built to last, using only the highest-quality materials and components to ensure maximum durability and long-lasting performance.

We pride ourselves on our technical expertise. We work closely with our clients to understandtheir unique needs and provide customized solutions that meet their specific requirements.

Capacity from 50 to 1,000 kW
Fans diameter 630 - 910 mm
Fin spacing 2,1 - 2,3 - 2,5 mm
Noise level from 30 dB(A) at 10 m
Casing manufactured from galvanized steel with powder coating
Options: Stainless steel casing, multi refrigerant circuits, coil coating, tube axial fans & vibration dampers.

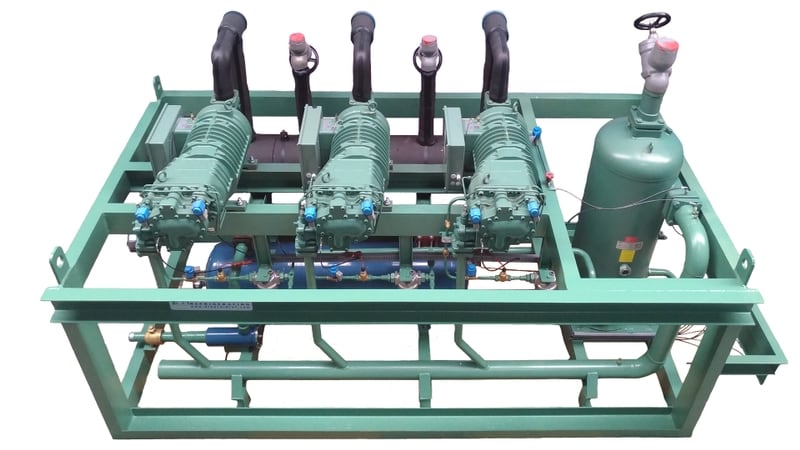

Multi Compressor Rack Refrigeration System

System with Screw Compressors

System with Reciprocating Compressors

RefCold's multi compressor rack system has been designed for installation in large cold storage or multi chamber cold warehousing facilities. These machines have the advantage of space saving, low maintenance cost and reduces energy consumption as well.

Cooling capacity ranging from 15 kW to 450 kW
Raised compressor mounts for easy service assess
Individual electronic oil management system and high-pressure oil return with alarm
Dedicated HP/LP switch for individual compressor
Suction gas header
Oil return filter with individual oil return valve
Service connection in suction and discharge line
Machined frame made of welded C steel profile

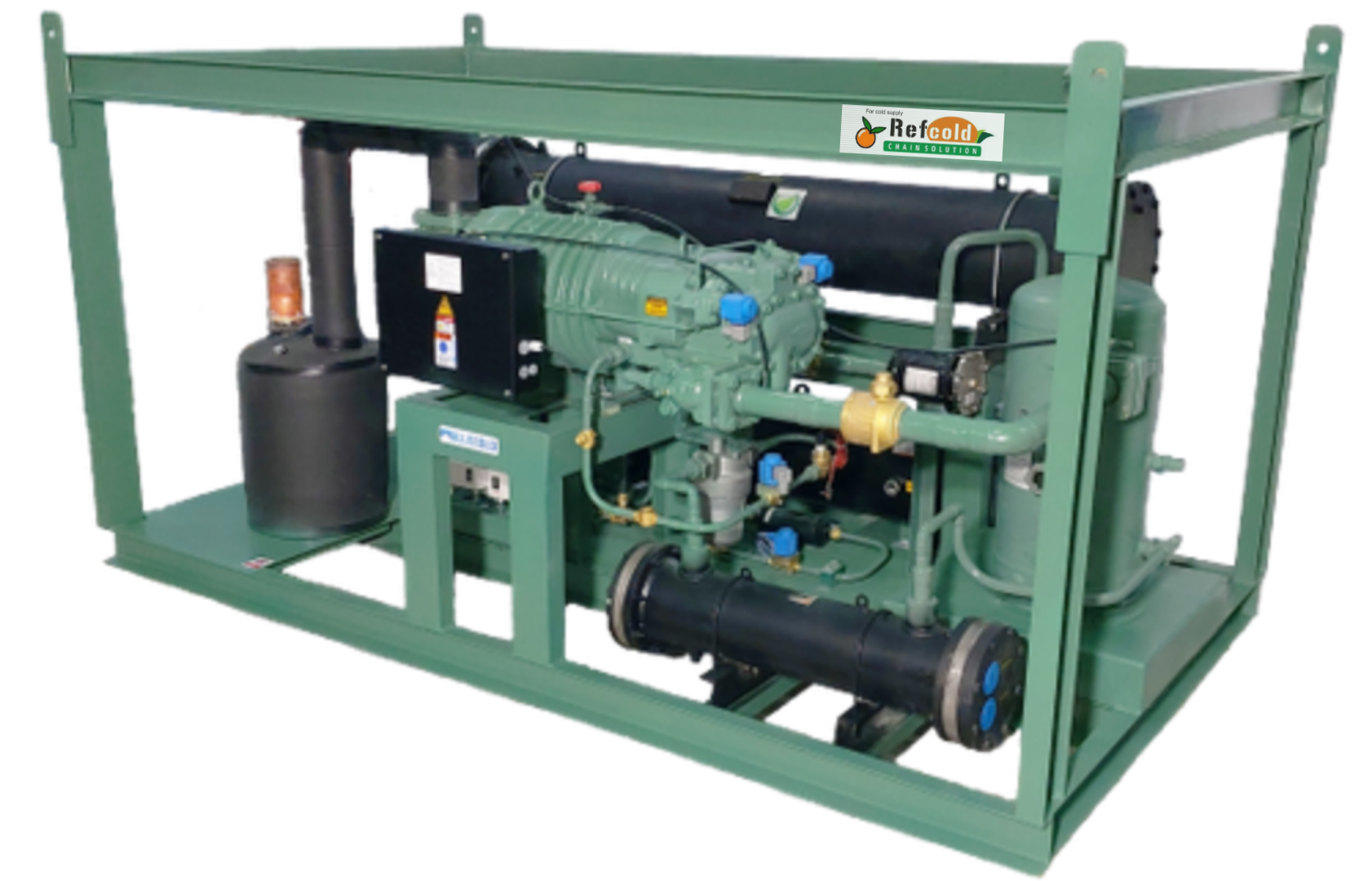

Screw Refrigeration System

RefCold's screw system has been designed for installation in large cold storage facilities. These machines have the advantage of space saving, low maintenance cost and reduces energy consumption as well.

Cooling capacity ranging from 15 kW to 450 kW
Raised compressor mounts for easy service assess
Individual electronic oil management system and high-pressure oil return with alarm
Dedicated HP/LP switch for individual compressor
Suction gas header
Oil return filter with individual oil return valve
Service connection in suction and discharge line
Machined frame made of welded C steel profile
Motor protection device sE-i1 full sensor kit

Dual Discharge Cold Room Cooling Unit

Freon Slim Line Unit Cooler

Manufactured with cutting edge technology and 3D modeled compact design with copper tubes, Blue Cold slim line unit coolers throws air from both the sides ensures to deliver low air draft.

Collared fan outlet for wide air throw
Bullet expansion on tubes
SS material ceiling mounting clamps for easy installation
Proven quality fans: Ziehl Abegg, EBM or Favelle
Cooling capacity ranging from 10 kW to 50 kW
Fin spacing available from 4 mm to 6 mm
Electric & Hot gas defrosting option
AlMg powder coated, GI powder coated & SS 304 casing for rust free operation

Ammonia Slim Line Unit Cooler

Manufactured with cutting edge technology and 3D modeled compact design with copper tubes, Blue Cold slim line unit coolers throws air from both the sides ensures to deliver low air draft.

Collared fan outlet for wide air throw
Individual tube's pressure test
Proven quality fans: Ziehl Abegg, EBM or Favelle
Cooling capacity ranging from 20 kW to 120 kW
Electric & Hot gas defrosting option
Fin spacing available from 4 mm to 6 mm
GI powder coated & SS 304 casing for rust free operation
SS material ceiling mounting clamps for easy installation

Tube Axial Fans

Fans

Tubeaxial Fans are designed to handle a wide range of requirements, from general ventilation to process air supply. The mounting flexibility makes it an ideal choice for many industrial applications. Fans are available as directly driven, with steel or impellers that are fixed blade pitch.

Fan Diameters: 400 mm, 450 mm, 500 mm, 550 mm, 630 mm, 710 mm, 800 mm, 900 mm, 1000 mm & 1200 mm
Power Supply: Single Phase 220 V/50 Hz, Three Phase 440 V/50Hz & Three Phase 400 V/60 Hz
Temperature: -40 °C to 60 °C
Air Pressure: 0 Pa to 400 Pa
Blade Type: PAG, PPG, Aluminium
Motor Rating: IE2 & IE3

Cold Room Control System

Condensing Units

RefCold panels are designed & customized to perfection and specialty for cold rooms & cold storage. These panels are manufactured to European standard and are CE certified.

Defrosting: Air, Water & Electrical
Controlled circuit
Power supply safety protection
CE marked units to supply in Europe, Middle East & Asia
Oil differential pressure control
Motor protection fans & contractors for compressors
Overload protection for compressor
Electronic controller
Refrigerant HP/LP control
Applications: Chiller Room, Freezer Room, Blast Freezer and Chiller, Walkin Cold Room

Shell and Tube Condenser

Condenser

A Shell & Tube Heat Exchanger Consists of a Shell with Traditional plain tubes or enhanced surface tubes for high thermal performance.

Our condenser production includes a various range of condensers providing easy solutions for Refrigeration and Cooling application.

Carefully optimized for the most used HCFC / HFC refrigerants.
Standard models attain condensation capacity ranging from 3 to 900 kW.
Available in 2 / 3 / 4 circuits
All condenser models are easily openable for inspection and maintenance purposes.
Customized length with different MOC can be designed for specific application as per request

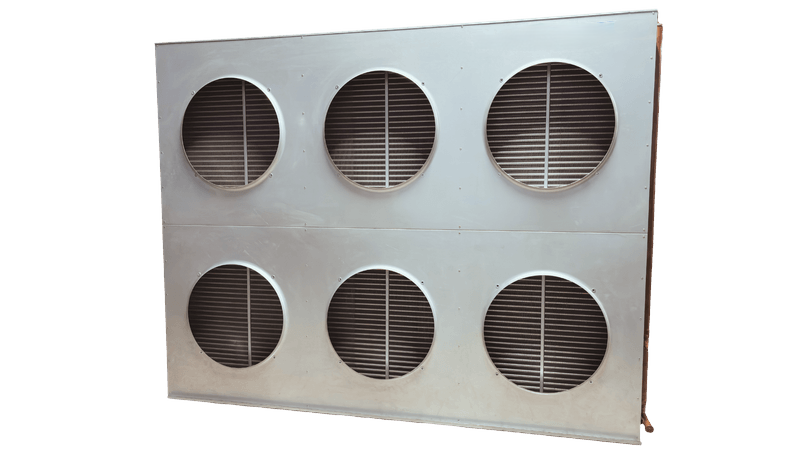

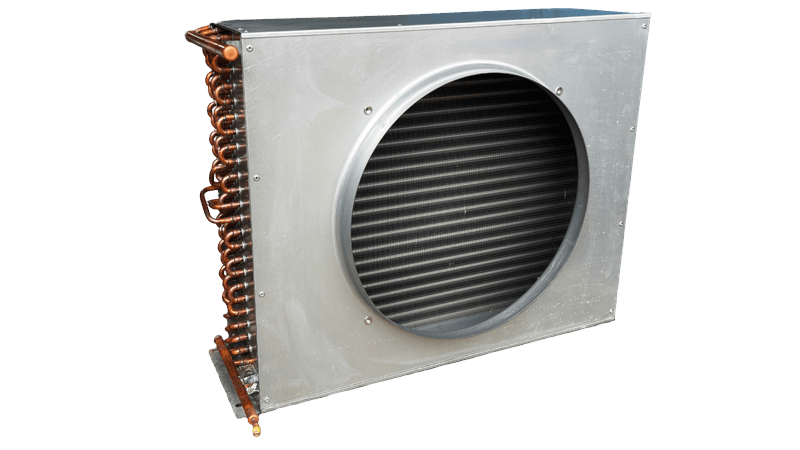

Air Cooled Condensers

Unlock unparalleled efficiency and reliability with our Air-Cooled Condensers, expertly engineered to meet the demands of your specific environment Our condensers are designed to thrive in harsh ambient temperatures, ensuring optimal performance no matter where you are located.

Key Features:-
- Maximized Efficiency: Tailored to deliver superior cooling performance while minimizing energy consumption.
- Cost-Effective Solution: Carefully balanced capital and operating costs provide long-term savings without compromising on quality
- Geographical Adaptability: Customizable options ensure that our condensers perform exceptionally in your unique climate conditions.

GI Powder coating option
CNC machined copper piping
Axial flow fan for high air flow
Cooling capacity: 1.5 kW to 1000 kW
Medium, low & ultra low temperature applications
Brazed under inert nitrogen atmosphere
Copper tube and aluminum fins

Bootstrap demo
